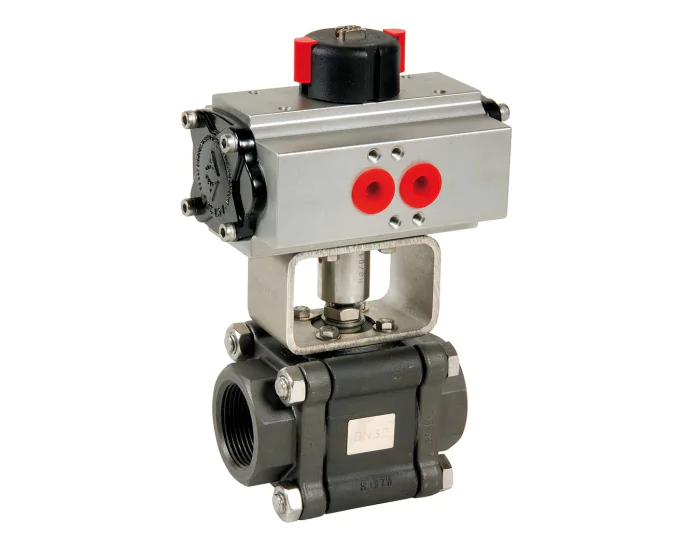

Carbon steel ball valve 702 + ADA/ASR pneumatic actuator
€242.83
(excl. btw)
The 702 series carbon steel ball valve has an A216WCB body and a CF8M ball. It is actuated with either a spring return or double acting ACTREG pneumatic actuator, up to DN50.
Specification
Value
Option certificate 3.1
Yes
Maximum delta P (bar)
10
Operating angle (°)
90
Shaft/stem matérial
Stainless steel 316
Adjustable limit screws
Yes
ATEX compatible
Yes
DN
DN8 - 1/4''
Body material
Carbon steel A216 WCB (1.0619)
ATEX protection mode
Ex c
Number of ways
2
Bore
Full
Packing gland
Graphite
PS (bar)
140
Connections
BSP FF
Seats
PTFE-Carbon
Ball material
Stainless steel 316
Surface temperature
TX
Pneumatic actuator type
Double acting
Ball valve design
3-piece body
Warranty period
1 year
CE
Excluded (Article 4. §3)
Range
Industry
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
2394
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF Double acting DN8 - 1/4''
271540015100
S1002378
€242.83
(excl. btw)
add to cart
2395
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF Spring return DN8 - 1/4''
271540016100
S1002379
€249.37
(excl. btw)
add to cart
2396
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF Double acting DN10 - 3/8''
271541015100
S1002380
€242.83
(excl. btw)
add to cart
2397
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF Spring return DN10 - 3/8''
271541016100
S1002381
€250.01
(excl. btw)
add to cart
2398
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' BSP FF Double acting
271542015100
S1002382
€242.83
(excl. btw)
add to cart
2399
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' BSP FF Spring return
271542016100
S1002383
€258.74
(excl. btw)
add to cart
2400
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' BSP FF Double acting
271543015100
S1002384
€255.56
(excl. btw)
add to cart
2401
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' BSP FF Spring return
271543016101
S1002385
€288.76
(excl. btw)
add to cart
2402
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' BSP FF Double acting
271544015100
S1002386
€235.80
(excl. btw)
add to cart
2403
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' BSP FF Spring return
271544016101
S1002387
€338.84
(excl. btw)
add to cart
2404
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 BSP FF Double acting
271545015101
S1002388
€362.10
(excl. btw)
add to cart
2405
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 BSP FF Spring return
271545016102
S1002389
€430.44
(excl. btw)
add to cart
2406
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 BSP FF Double acting
271546015101
S1002390
€361.96
(excl. btw)
add to cart
2407
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 BSP FF Spring return
271546016103
S1002391
€456.20
(excl. btw)
add to cart
2408
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' BSP FF Double acting
271547015102
S1002392
€459.00
(excl. btw)
add to cart
2409
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' BSP FF Spring return
271547016104
S1002393
€656.96
(excl. btw)
add to cart
2410
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Spring return Welding BW
271562016100
S1002394
€258.74
(excl. btw)
add to cart
2411
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Double acting Welding BW
271564015100
S1002395
€235.80
(excl. btw)
add to cart
2412
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Spring return Welding BW
271564016101
S1002396
€338.84
(excl. btw)
add to cart
2413
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Double acting Welding BW
271567015102
S1002397
€459.00
(excl. btw)
add to cart
2414
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Spring return Welding BW
271567016104
S1002398
€656.96
(excl. btw)
add to cart
2415
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Spring return Welding SW
271584016101
S1002399
€338.84
(excl. btw)
add to cart
2416
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Double acting Welding SW
271586015101
S1002400
€361.96
(excl. btw)
add to cart
2417
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Spring return Welding SW
271586016103
S1002401
€456.20
(excl. btw)
add to cart
